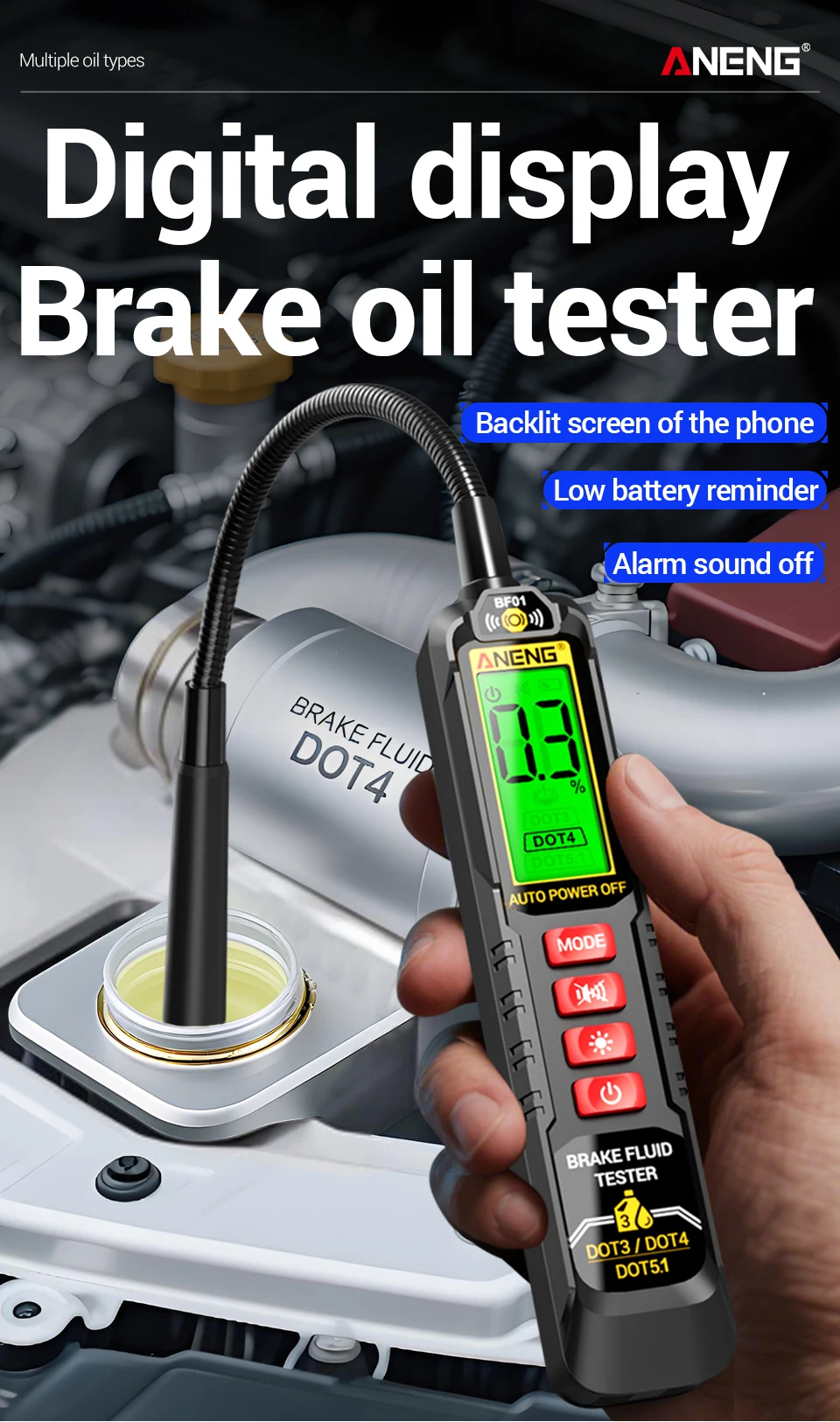

Brake Fluid Tester Handheld Oil Digital Display Screen Audible/Visual Alarm BF01+RT01 Digital Relay Detection Test Kit
$15.32
ANENG Brake Fluid Tester Handheld Oil Digital Display Screen Audible/Visual Alarm BF01+RT01 Digital Relay Detection Test Kit
This link contains multiple SKUs. Please choose the product you need based on the SKU image and place your order with caution.

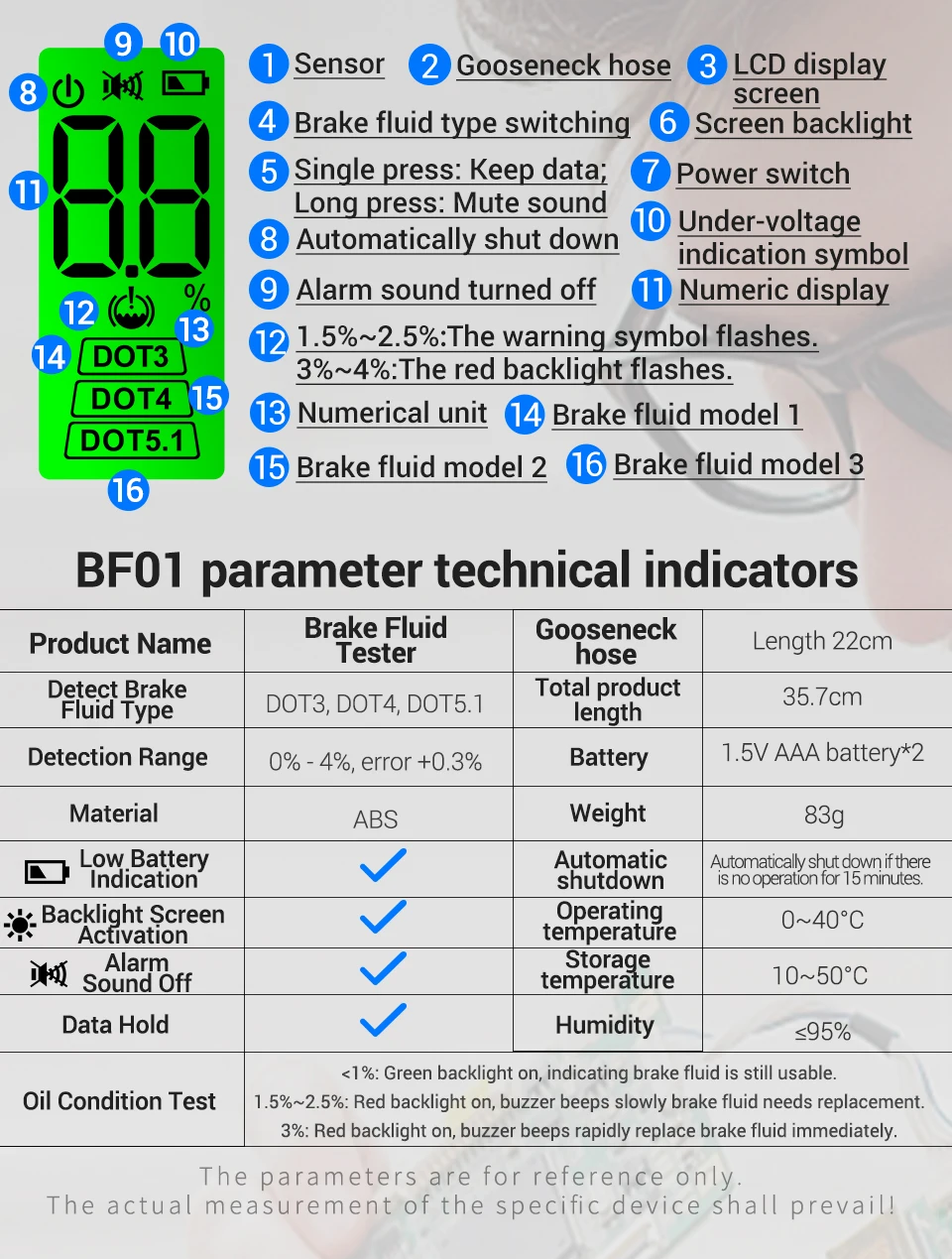

BF01 Selling points:

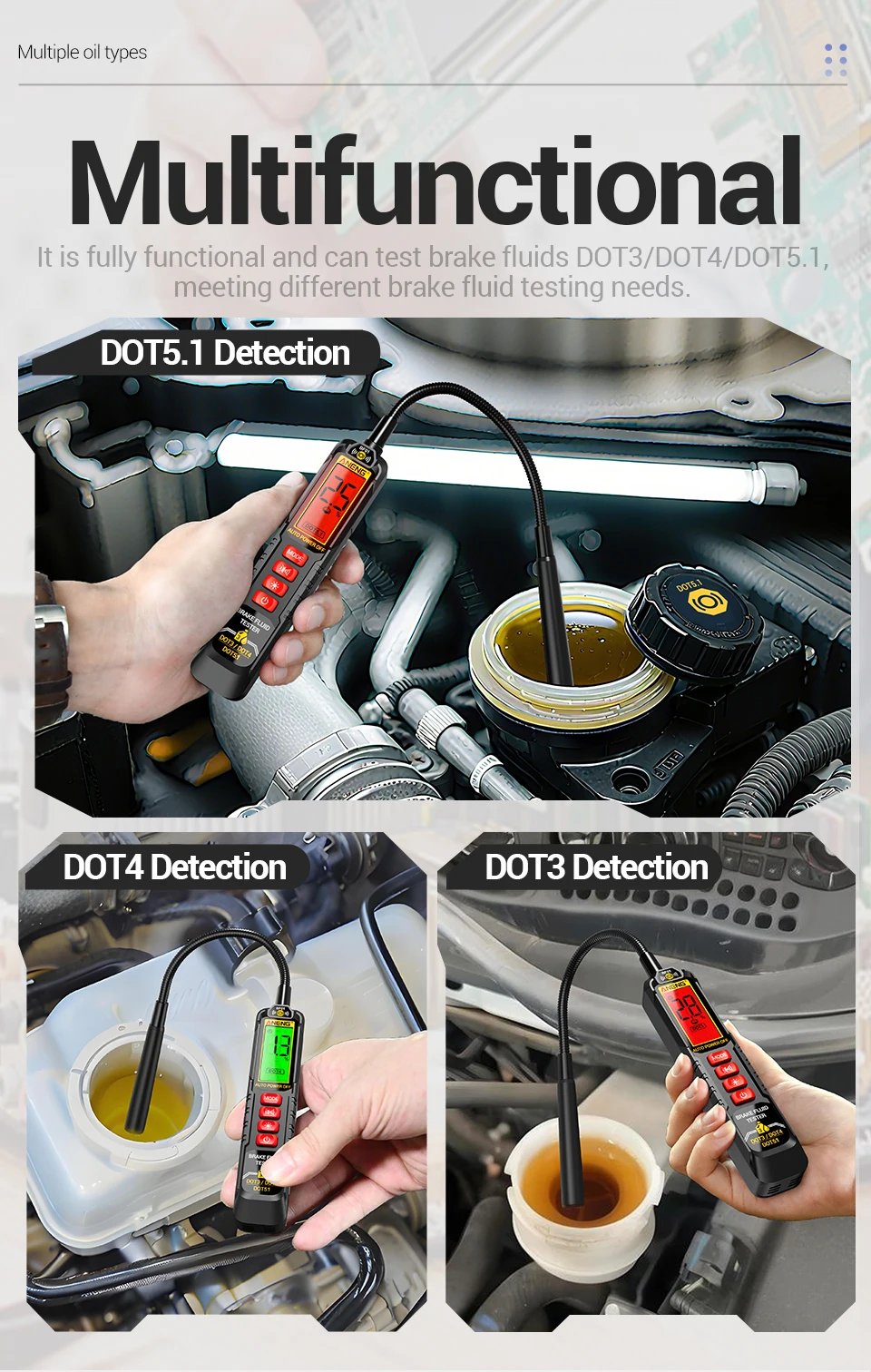

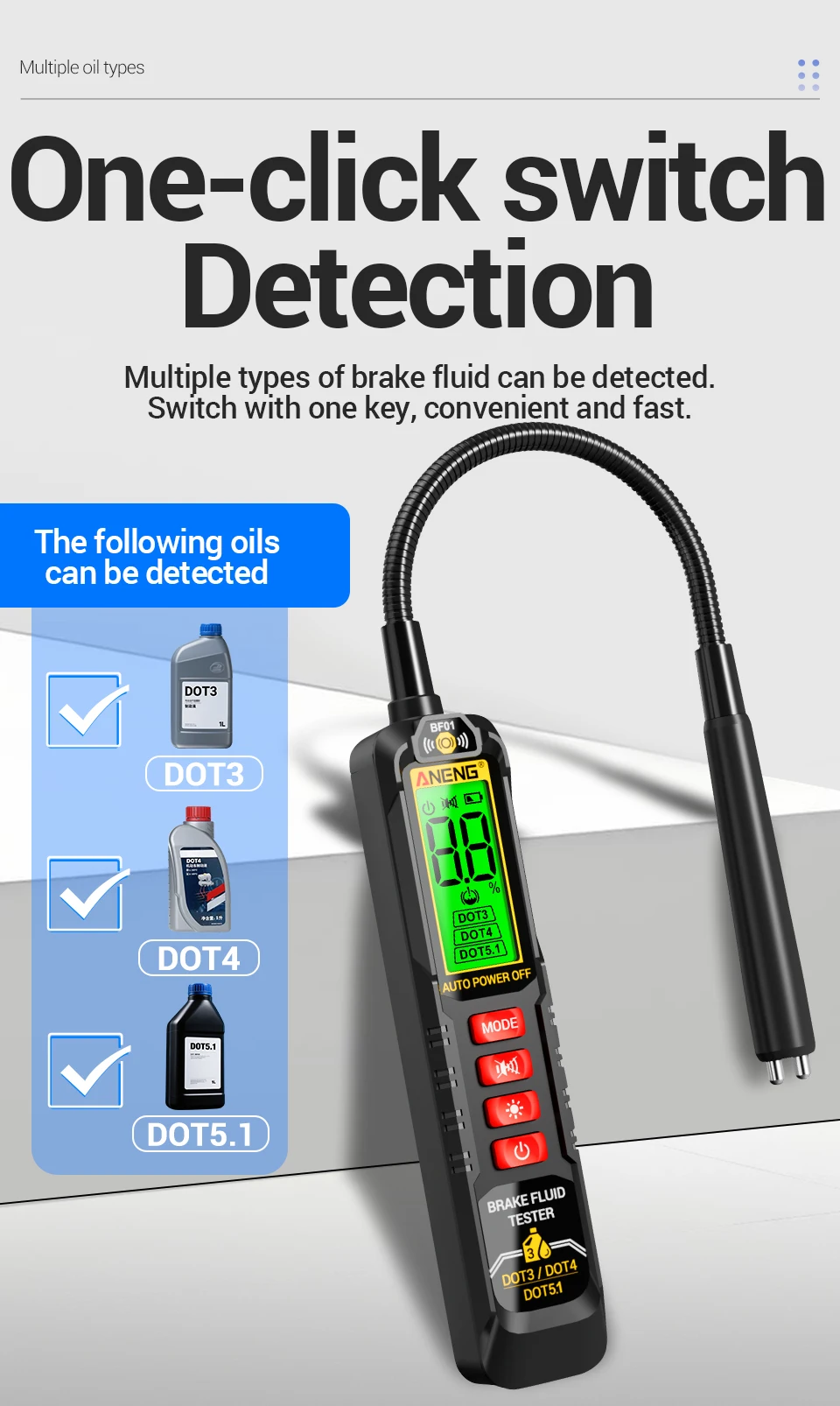

1. Accurate detection, covering mainstream models: can detect multiple types of brake fluid such as DOT3, DOT4, and DOT5.1, with a detection range of 0% -4% and an error of only ± 0.3%, accurately grasping the status of brake fluid.

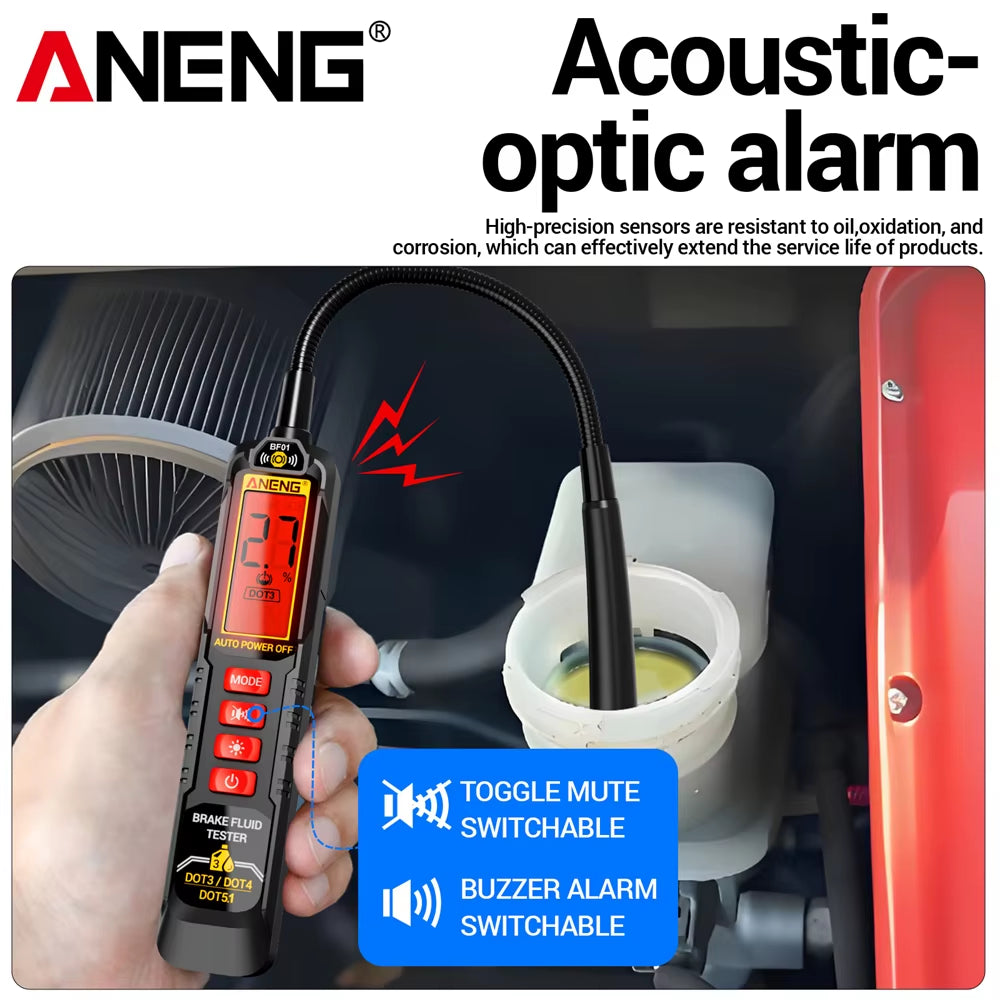

2. Intelligent prompt, intuitive and easy to read: equipped with low battery prompt, backlight screen activation function, oil status test through different backlight colors (green, red) and buzzer fast/slow sound, intuitively prompt whether the brake oil is available and whether it needs to be replaced.

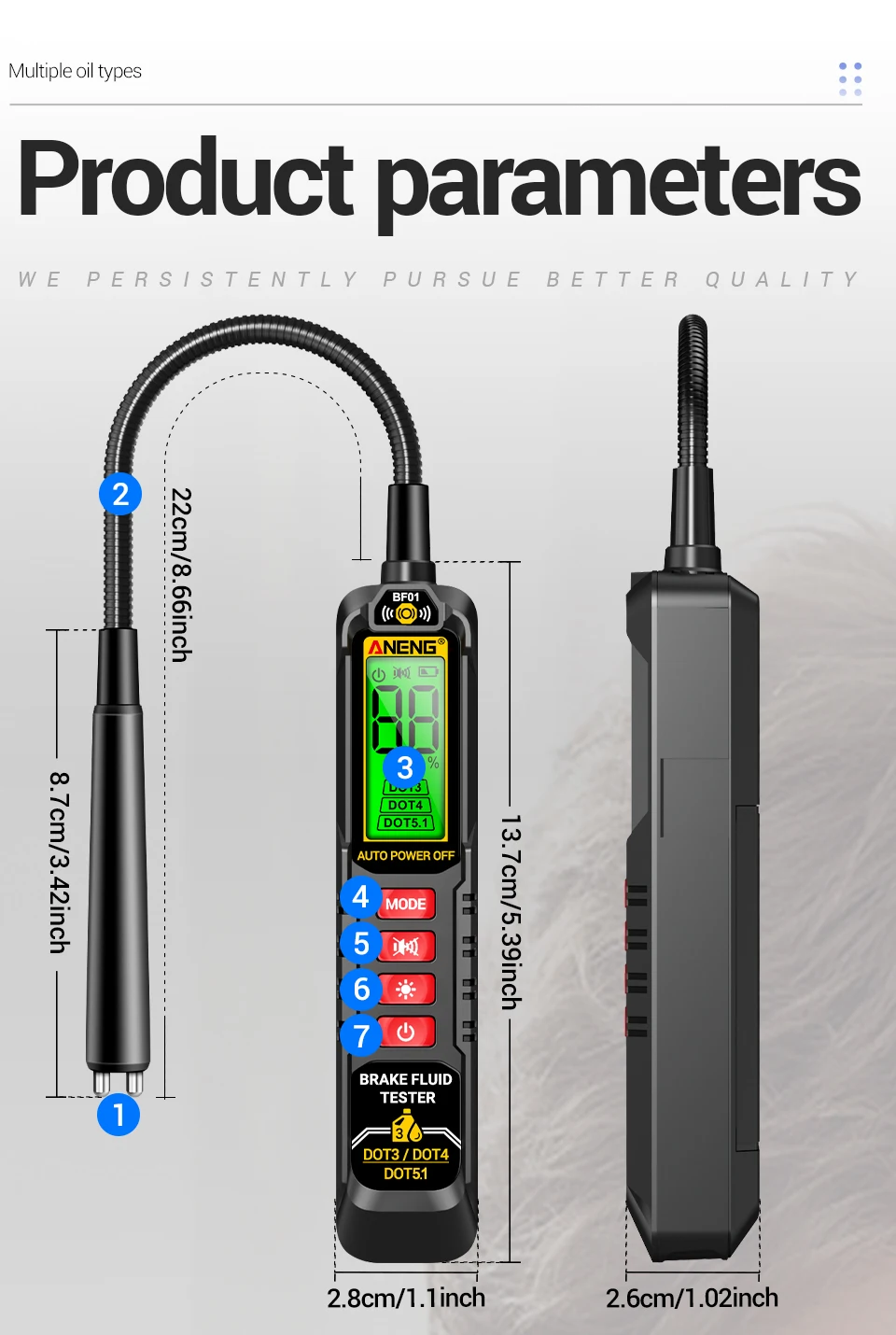

3. Practical design, convenient and durable: Made of ABS material, equipped with a 22cm gooseneck tube, the whole machine is 35.7cm long and weighs only 83g, making it easy to operate and carry; Supports data retention and automatically shuts down after 15 minutes of inactivity, saving energy and power.

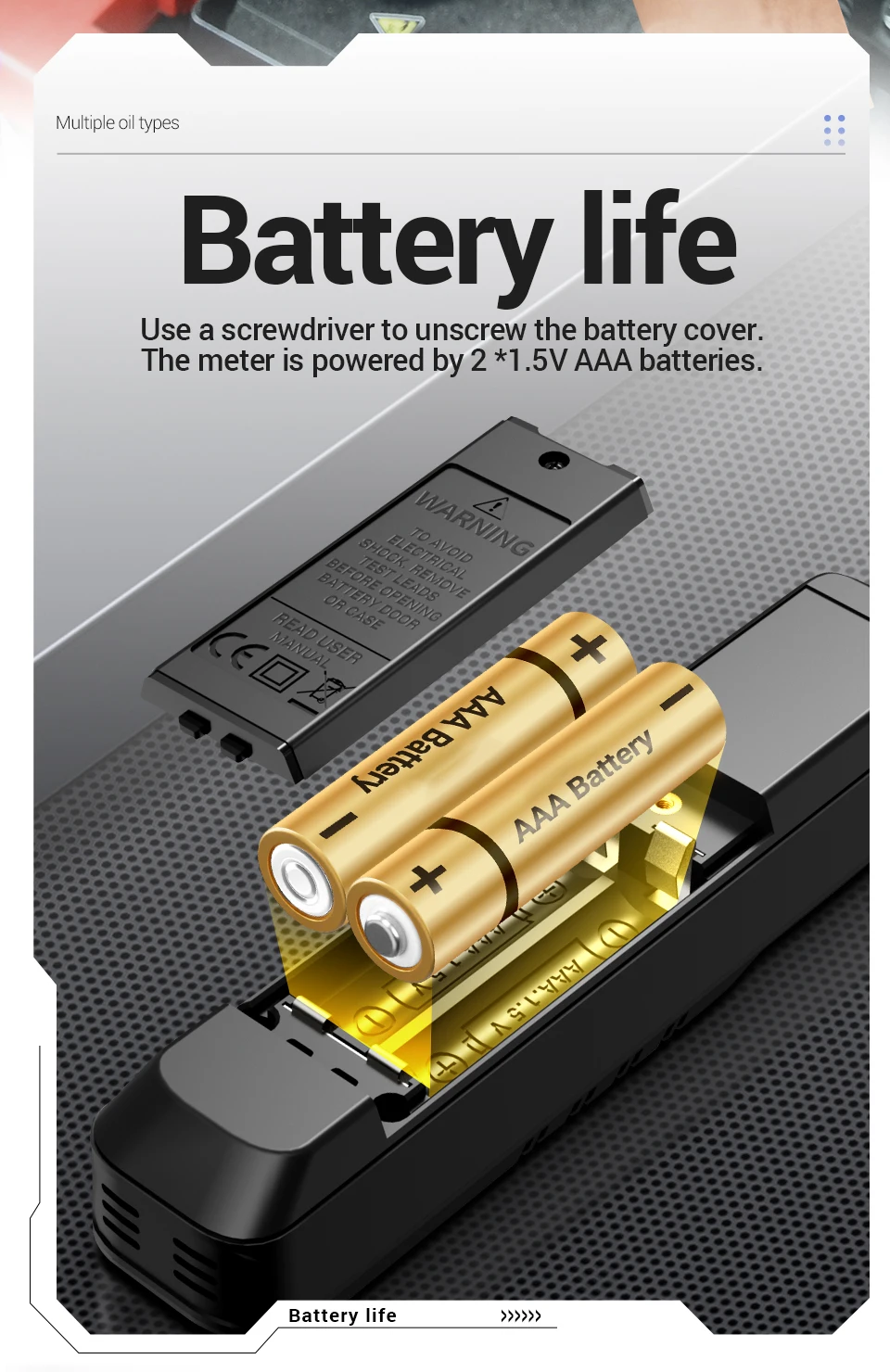

4. Wide range adaptation, stable and reliable: working temperature from 0 to 40 ℃, storage temperature from 10 to 50 ℃, humidity ≤ 95%, suitable for various environments; Powered by two 1.5V AAA batteries, the power supply is stable and easy to replace.

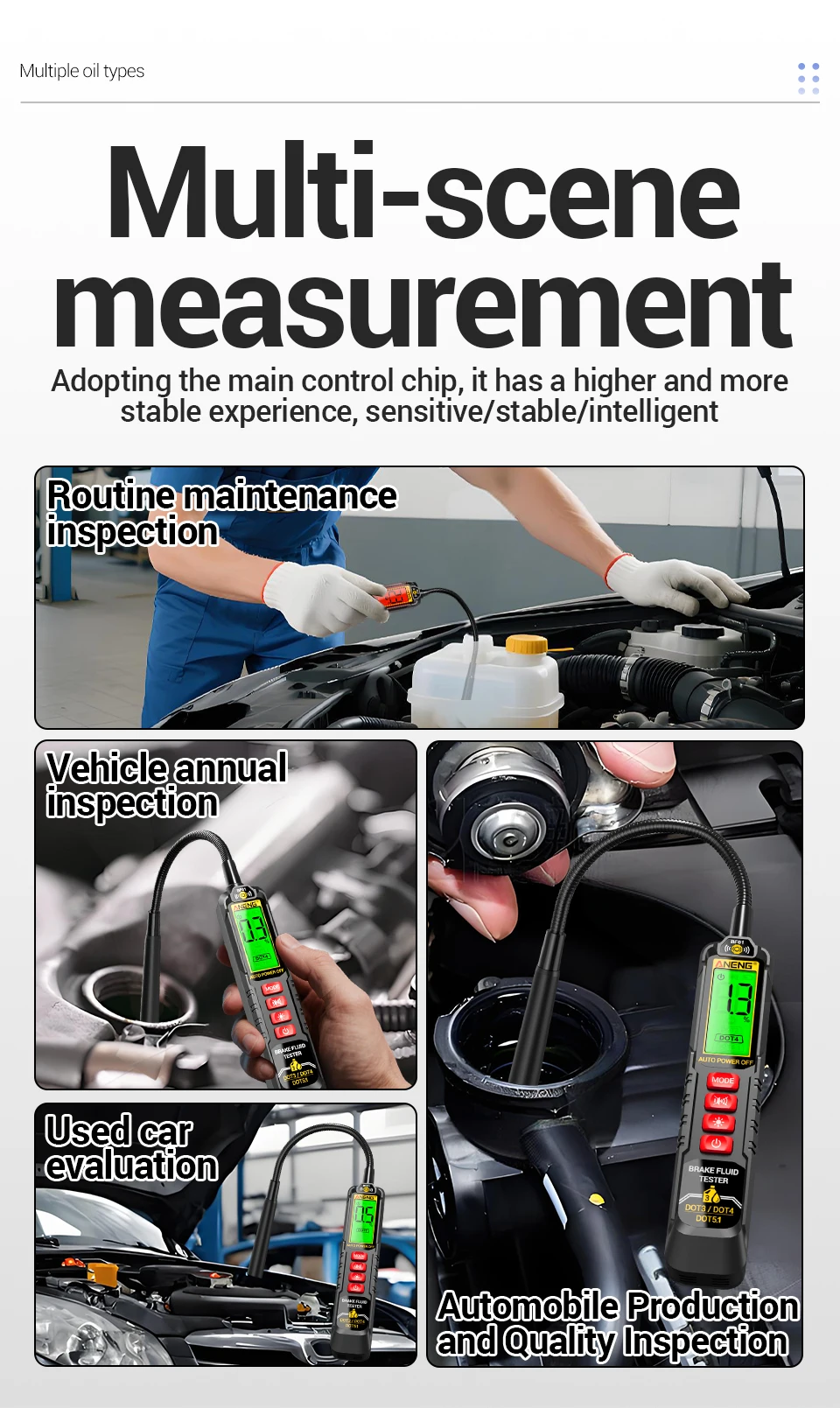

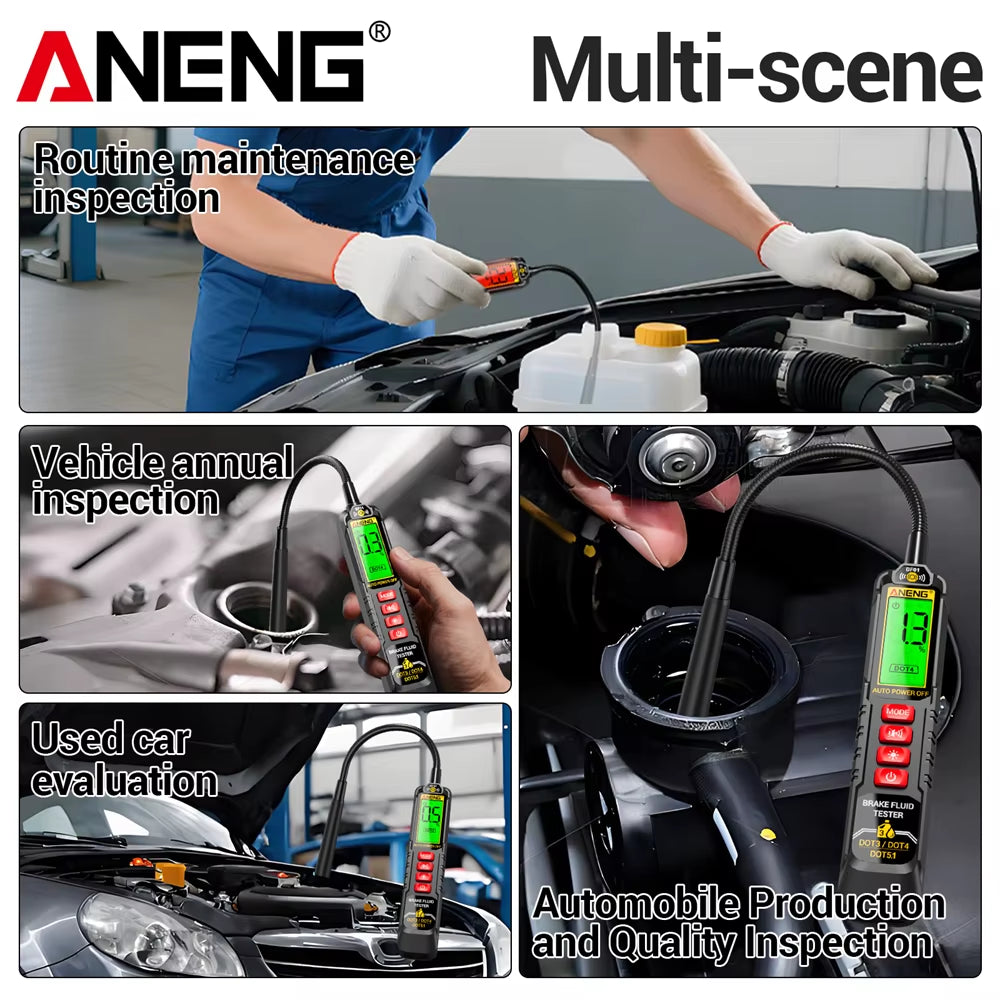

5. All-Scene Use – routine service, annual inspection, used-car evaluation, production QA,Garage Essential Car Maintenance Mechanic Tool,Routine maintenance inspection

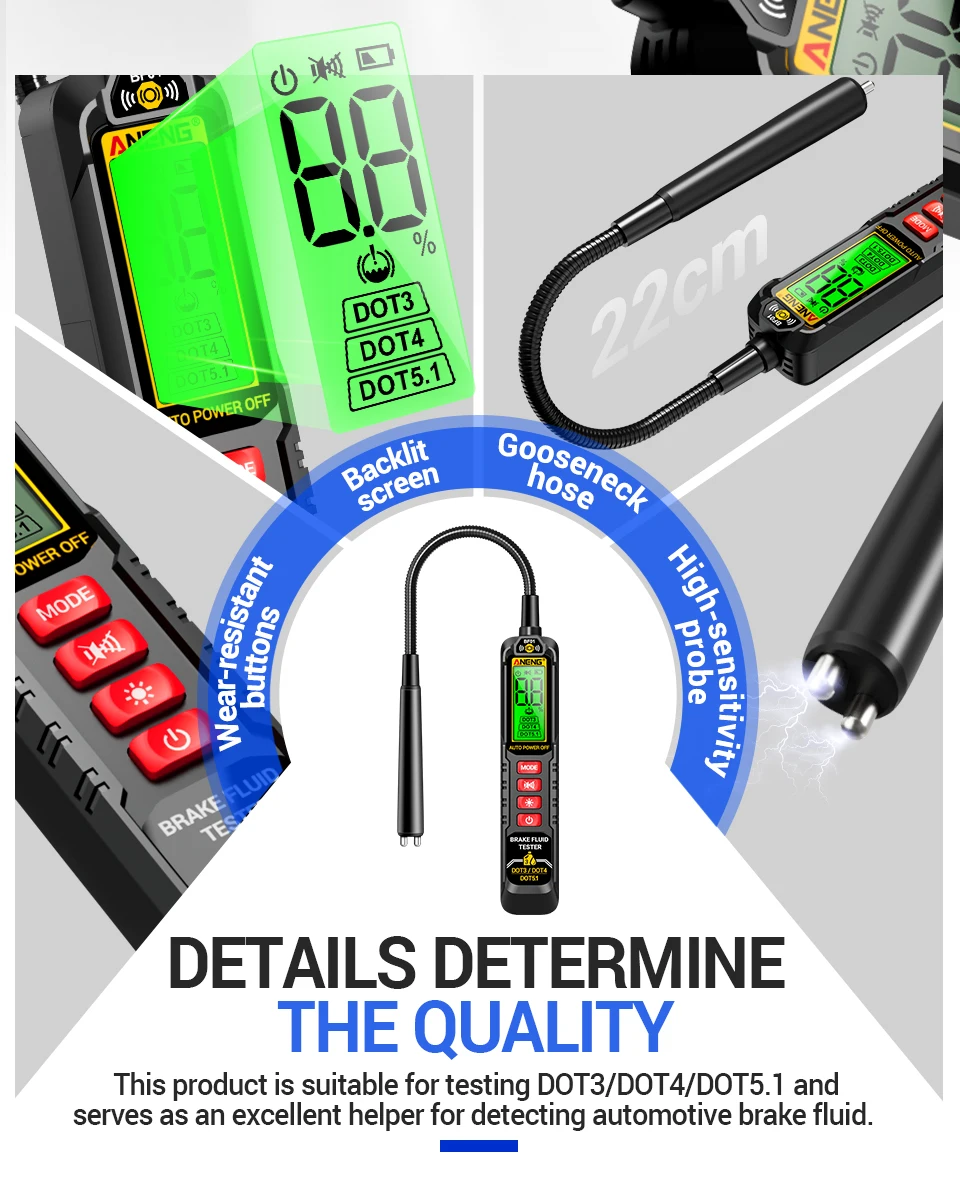

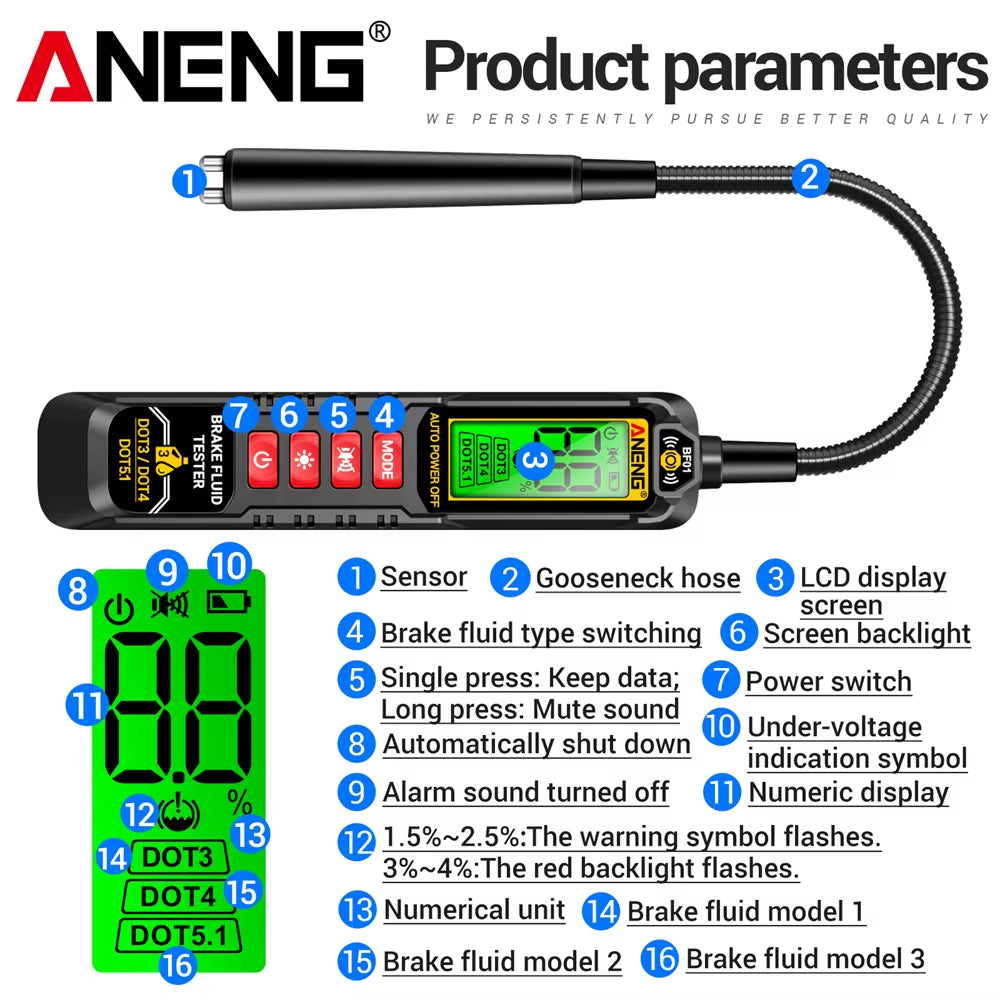

BF01 Features:
-- High Sensitivity Probe
-- High Precision Measurement

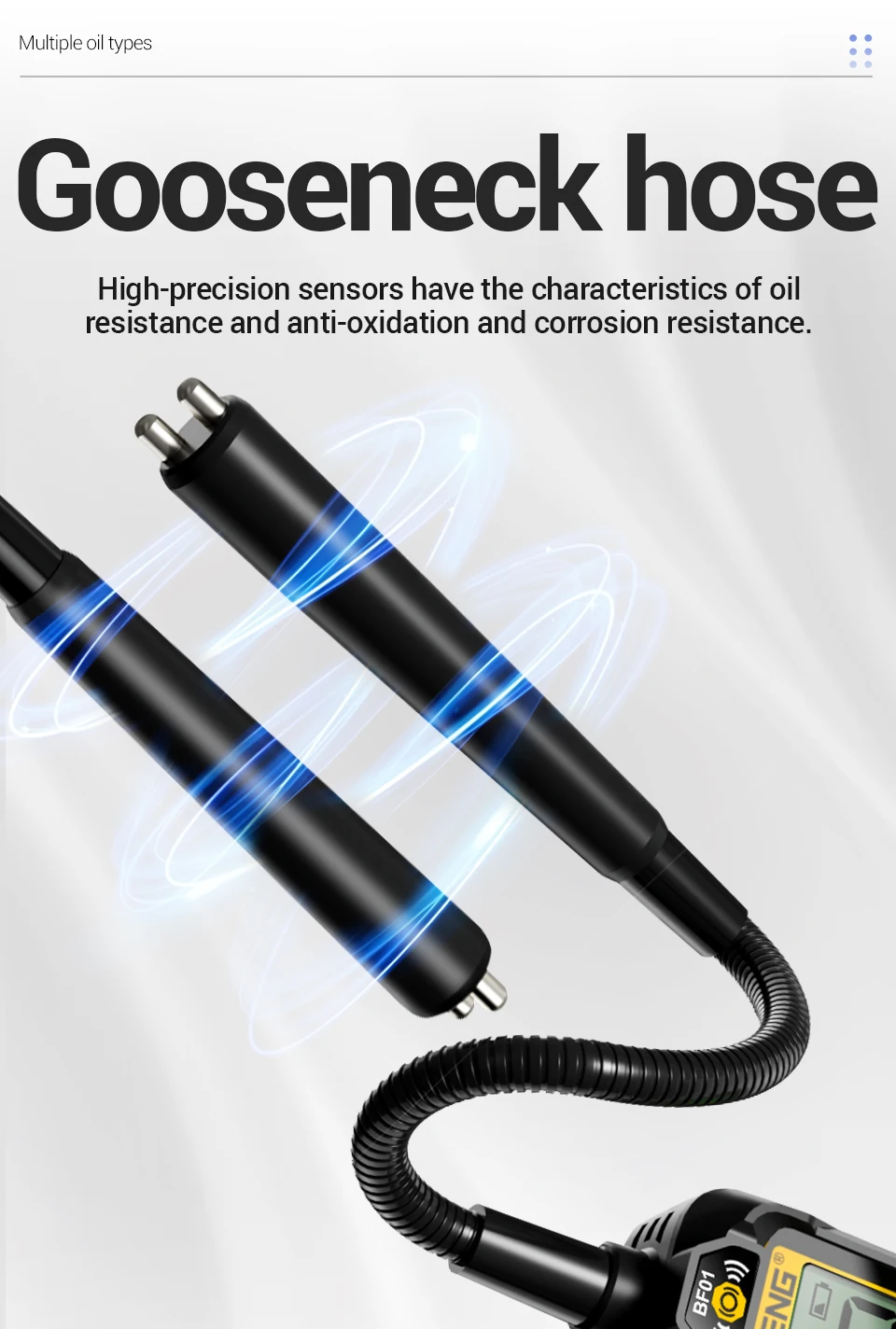

-- Flexible Metal Hose

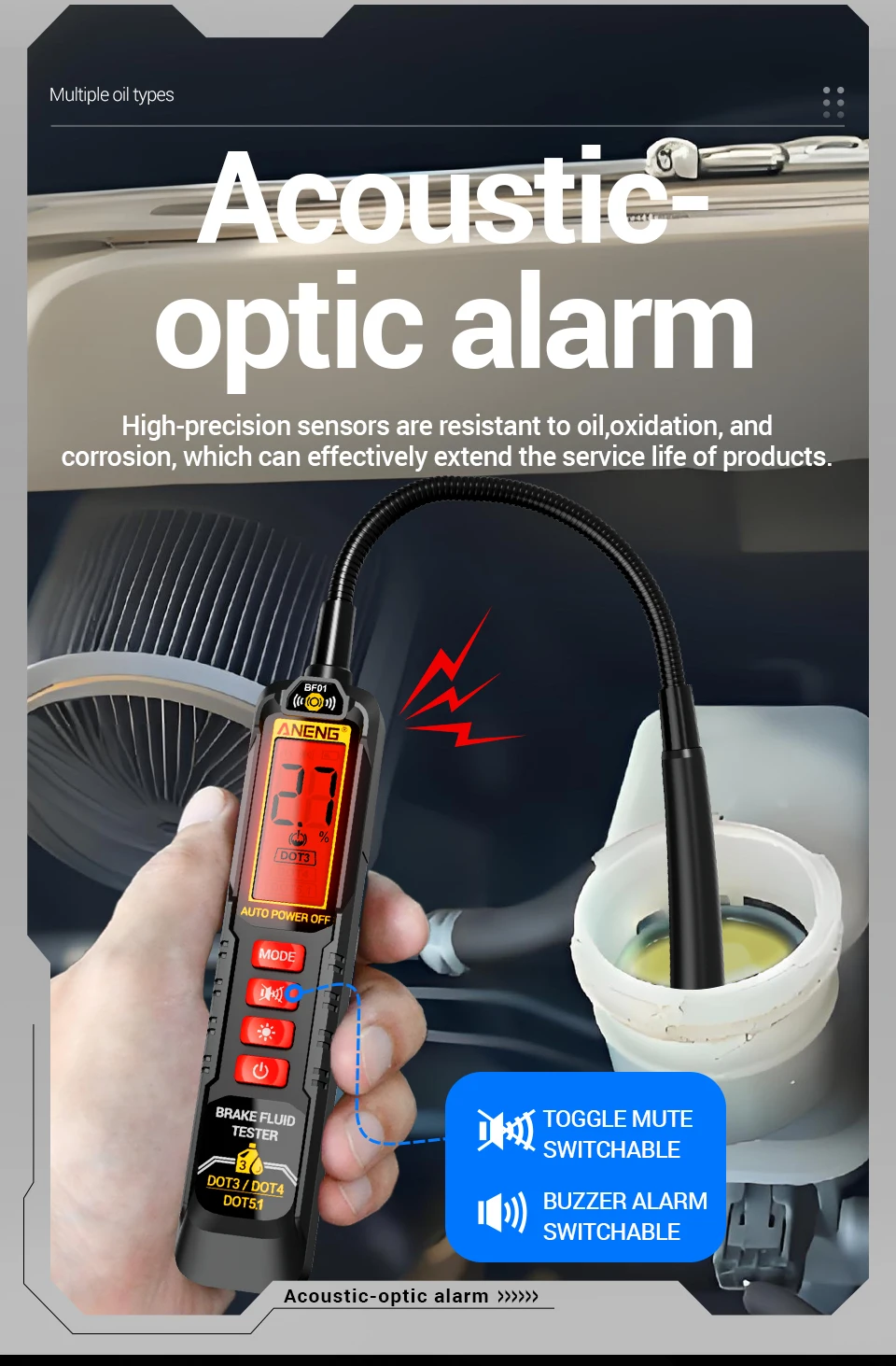

-- Sound and light alarm
-- HD 2 Colors Backlit
-- Multiple oil type detection: DOT3, DOT4, DOT5.1
-- Flashlight
-- Data Hold
-- Alarm sound off
-- Low battery indicator
-- Automatic shutdown
1. Accurate detection, covering mainstream models: can detect multiple types of brake fluid such as DOT3, DOT4, and DOT5.1, with a detection range of 0% -4% and an error of only ± 0.3%, accurately grasping the status of brake fluid.
2. Intelligent prompt, intuitive and easy to read: equipped with low battery prompt, backlight screen activation function, oil status test through different backlight colors (green, red) and buzzer fast/slow sound, intuitively prompt whether the brake oil is available and whether it needs to be replaced.
3. Practical design, convenient and durable: Made of ABS material, equipped with a 22cm gooseneck tube, the whole machine is 35.7cm long and weighs only 83g, making it easy to operate and carry; Supports data retention and automatically shuts down after 15 minutes of inactivity, saving energy and power.
4. Wide range adaptation, stable and reliable: working temperature from 0 to 40 ℃, storage temperature from 10 to 50 ℃, humidity ≤ 95%, suitable for various environments; Powered by two 1.5V AAA batteries, the power supply is stable and easy to replace.
5. All-Scene Use – routine service, annual inspection, used-car evaluation, production QA,Garage Essential Car Maintenance Mechanic Tool,Routine maintenance inspection
BF01 Features:
-- High Sensitivity Probe
-- High Precision Measurement
-- Flexible Metal Hose
-- Sound and light alarm
-- HD 2 Colors Backlit
-- Multiple oil type detection: DOT3, DOT4, DOT5.1
-- Flashlight
-- Data Hold
-- Alarm sound off
-- Low battery indicator
-- Automatic shutdown
--Three alarm modes:Value<1%; Value 1.5%~2.5%; Value >3%
BF01 Tips:
1. Before testing, ensure the metal probe is clean. Fully immerse the metal part of the detection head into the tested liquid for 3 seconds. Wait until the display stabilizes, observe the status, and then read the measurement value.
2. It's essential to protect the metal probe. Corrosion, scratches, or oxidation on the metal probe can potentially affect the accuracy of detection. After testing one typeof liquid, please clean the probe thoroughly to avoid potentially affecting subsequent test results.
BF01 Tips:
1. Before testing, ensure the metal probe is clean. Fully immerse the metal part of the detection head into the tested liquid for 3 seconds. Wait until the display stabilizes, observe the status, and then read the measurement value.
2. It's essential to protect the metal probe. Corrosion, scratches, or oxidation on the metal probe can potentially affect the accuracy of detection. After testing one typeof liquid, please clean the probe thoroughly to avoid potentially affecting subsequent test results.
RT01 ntroduce:

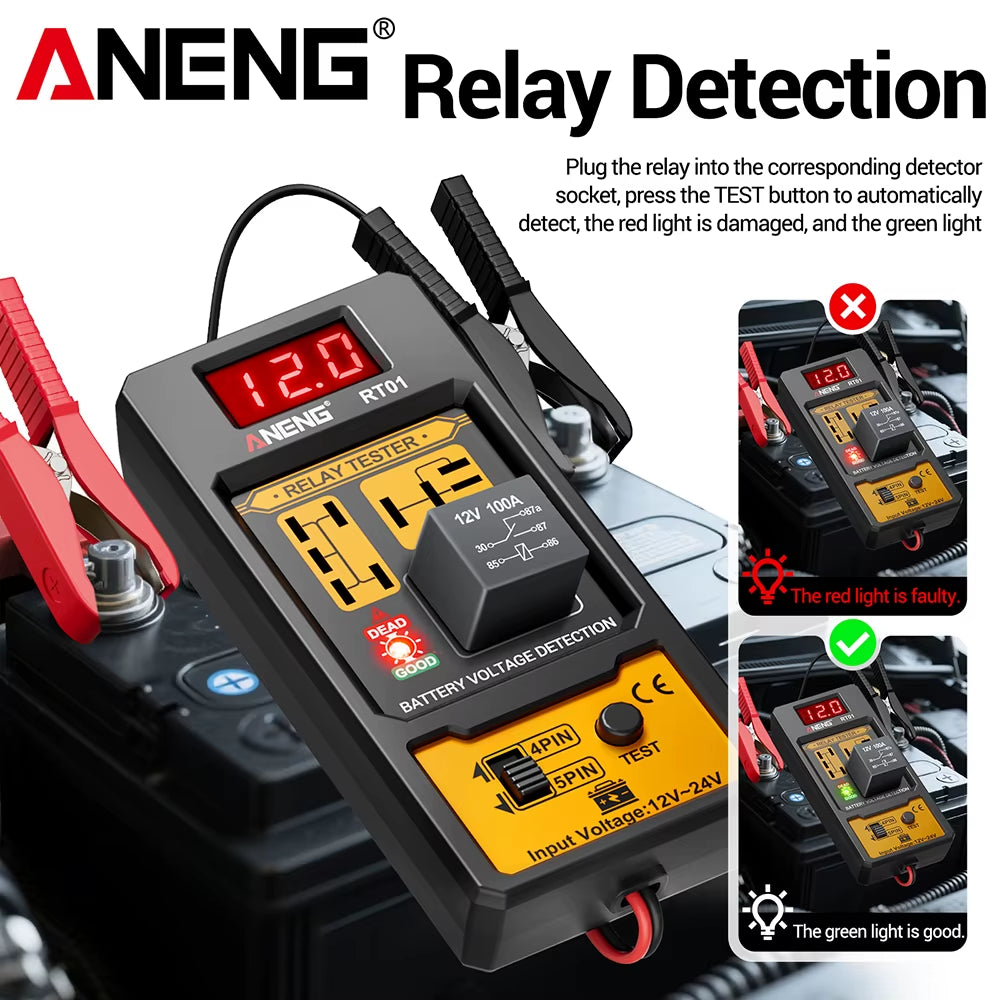

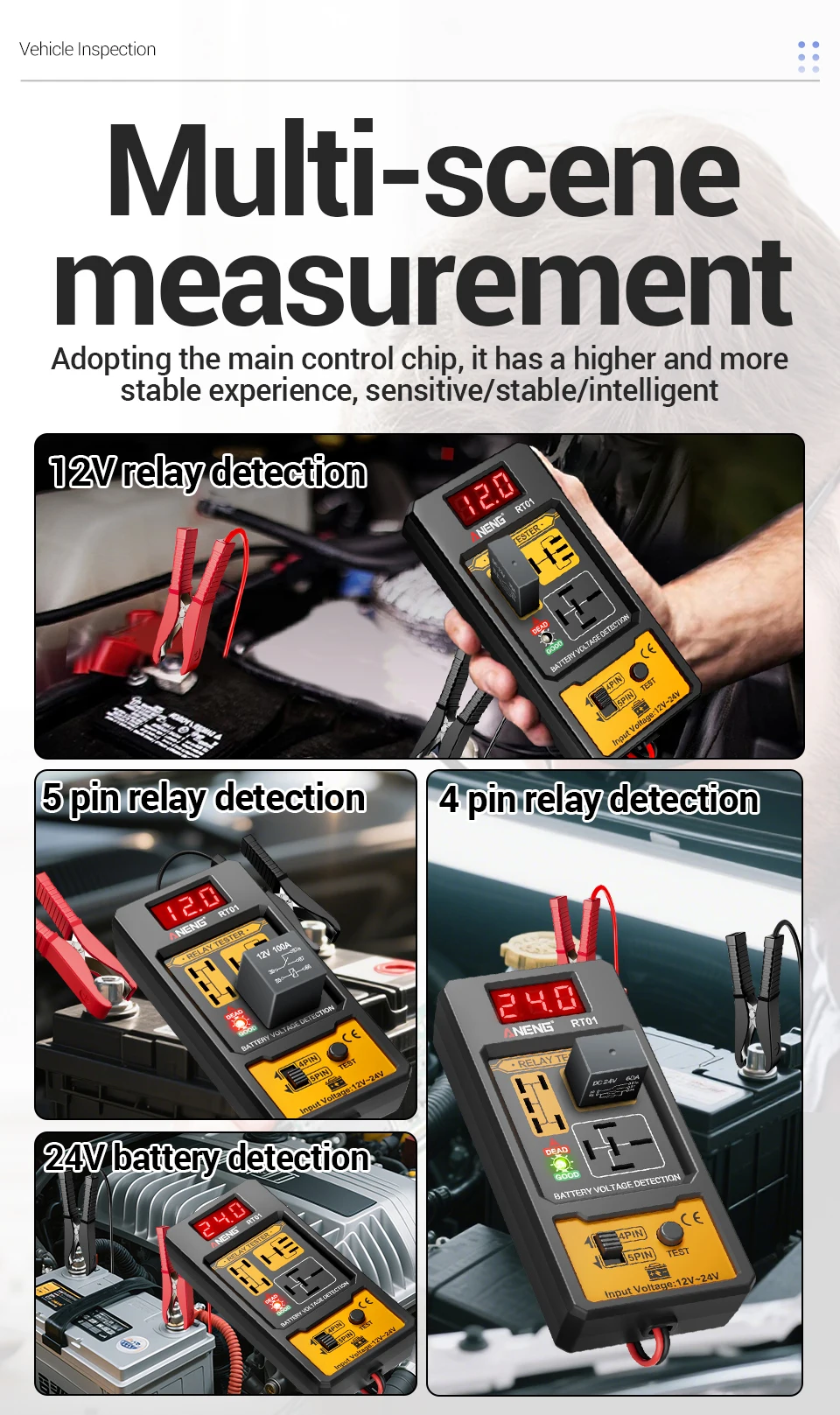

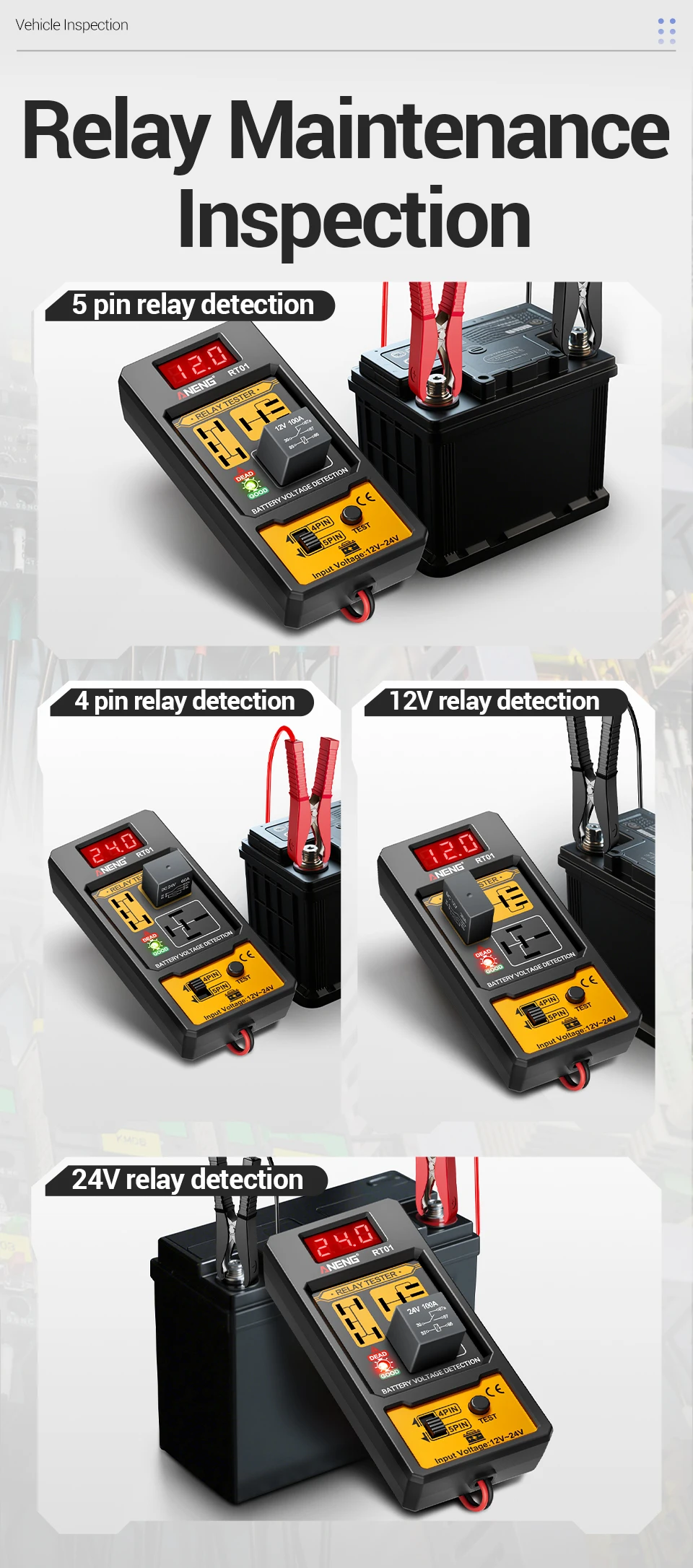

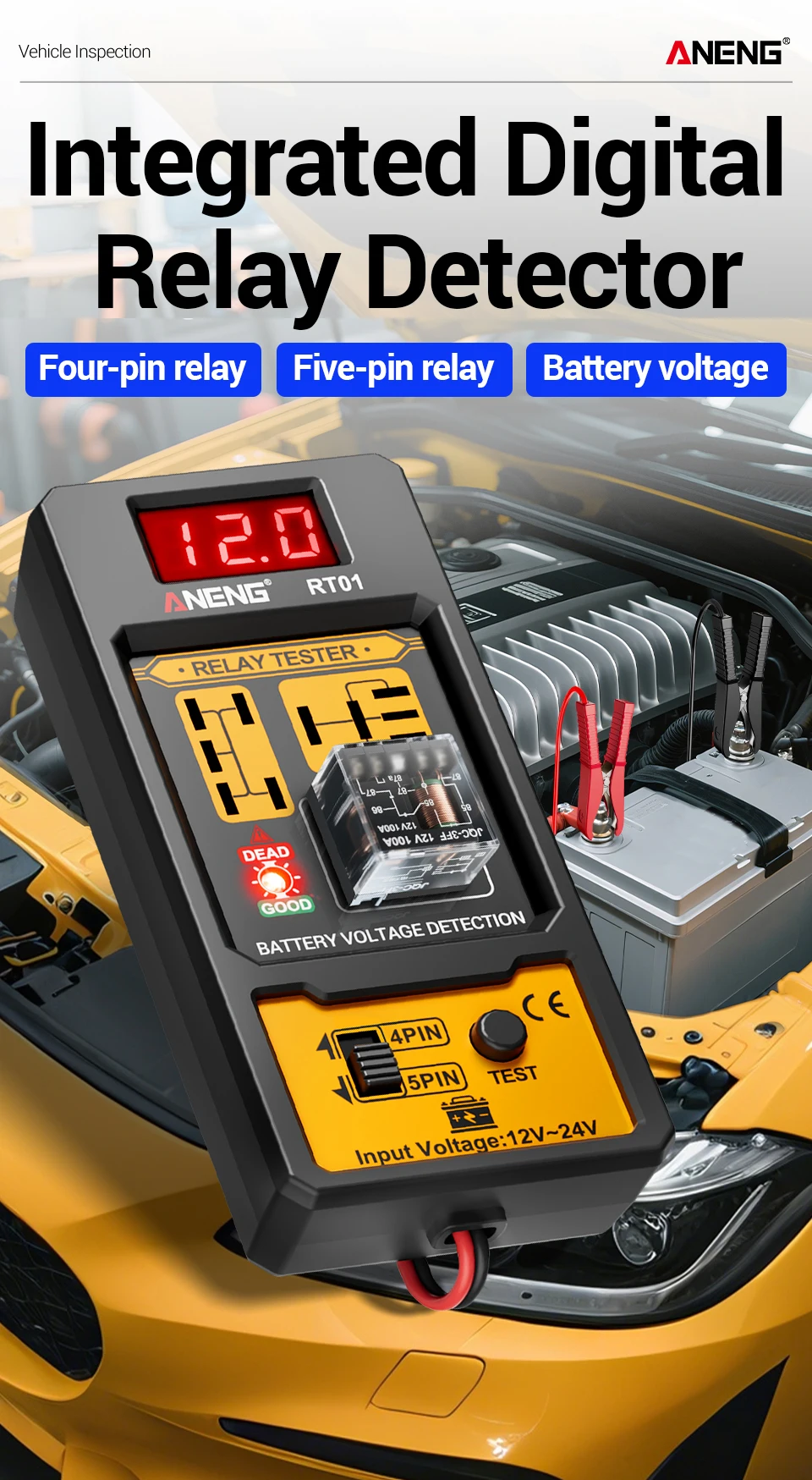

RT01 can quickly detect whether your relay is normal.It is easy to use and suitable for general-purpose automotive relays on the market.Durng testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position,the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.

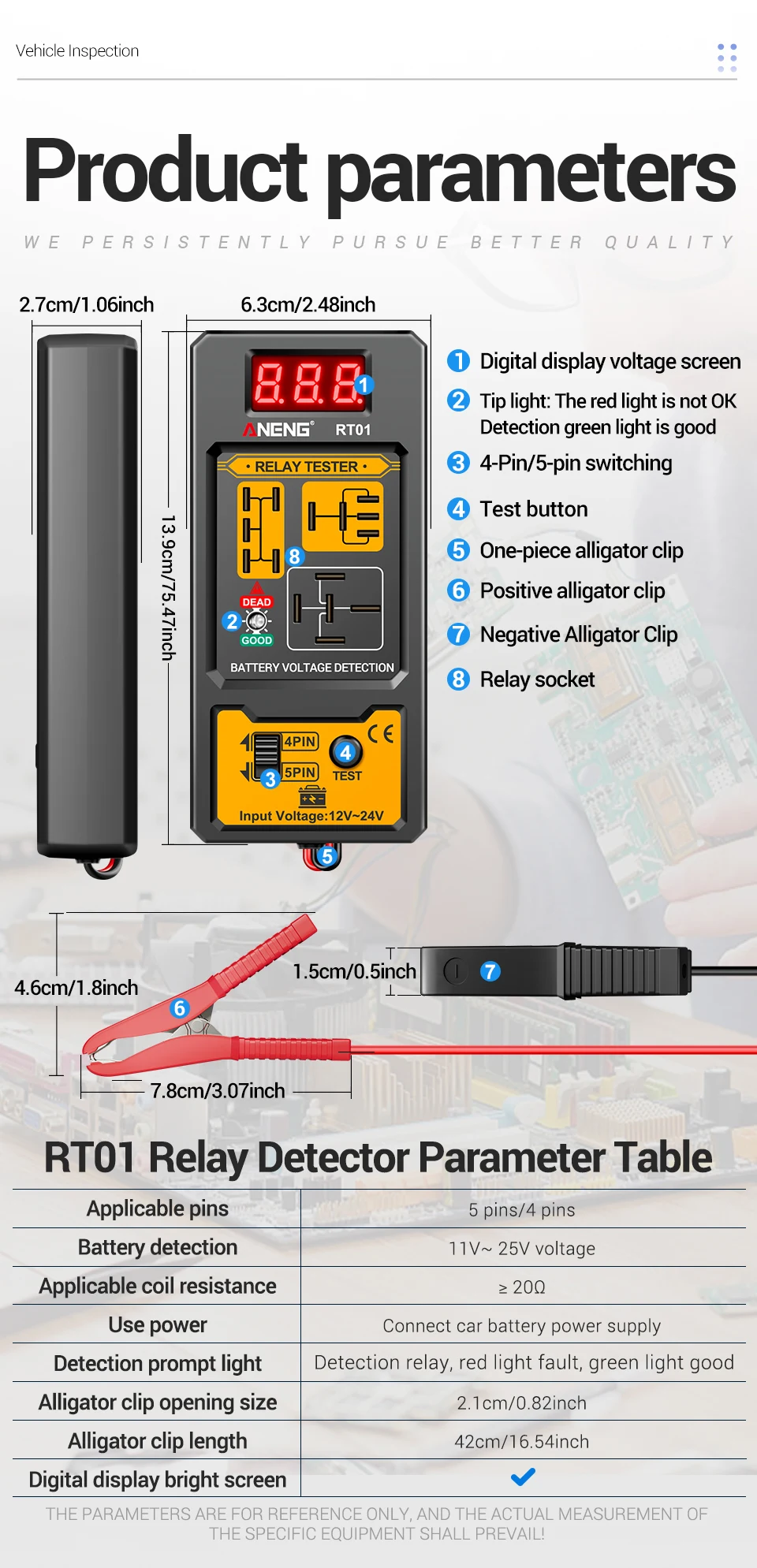

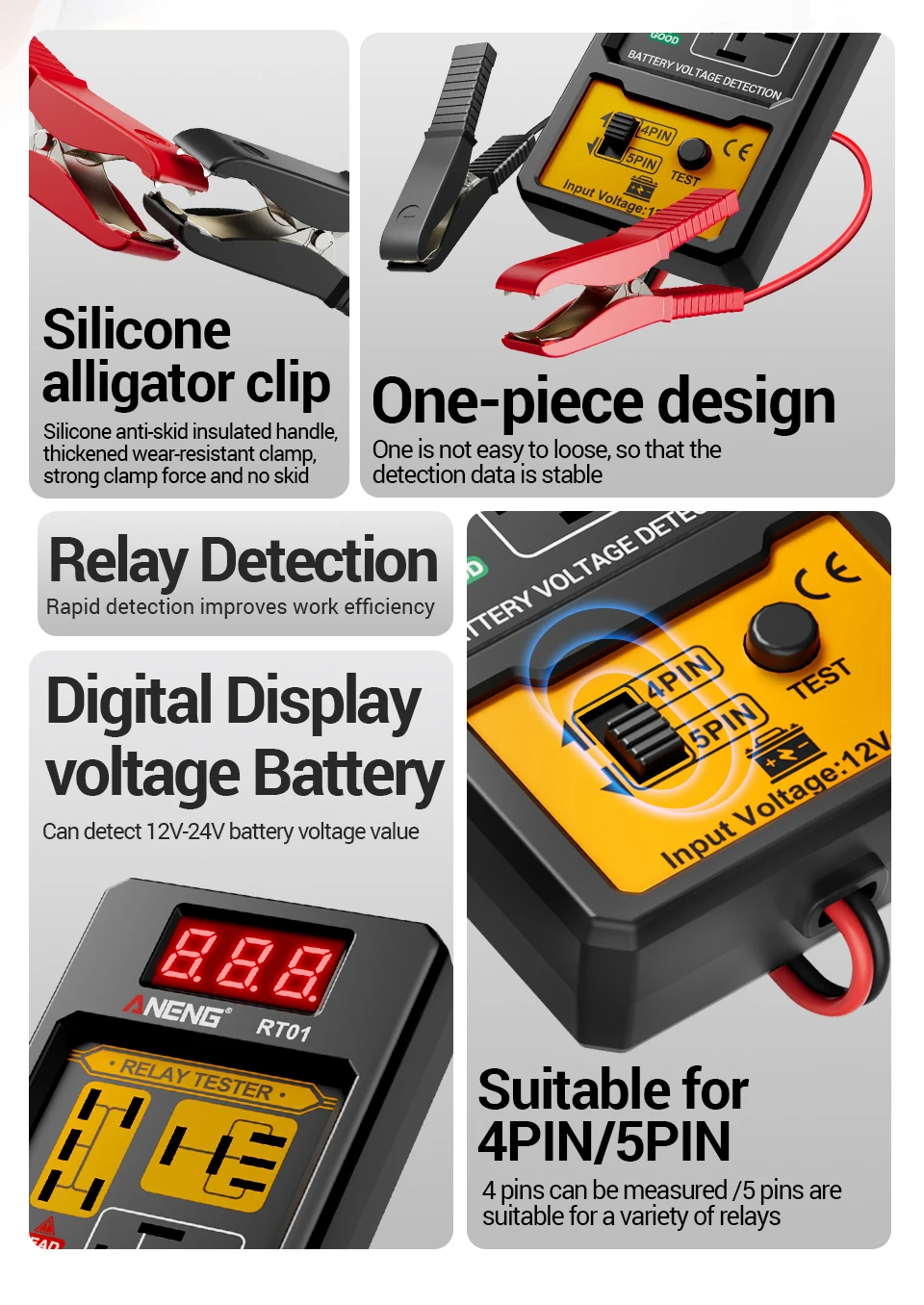

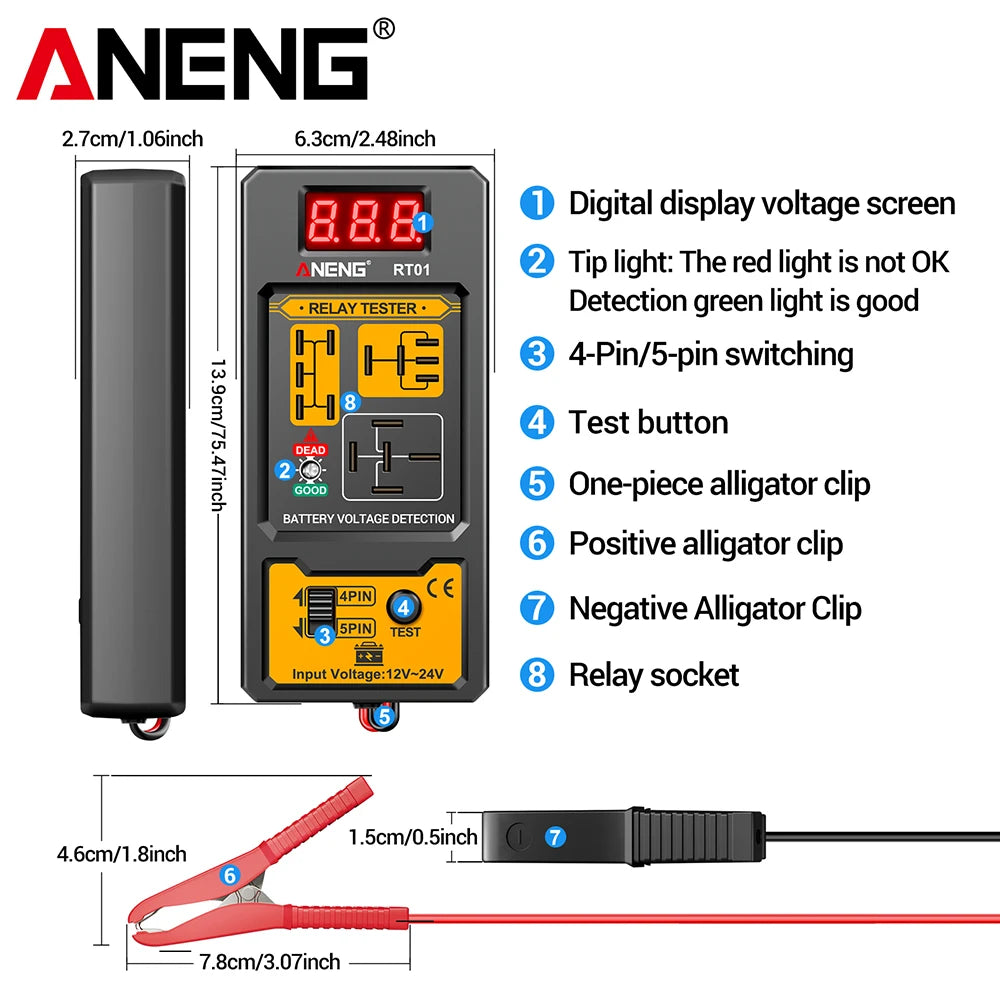

RT01 Specification:
Product Model:RT01 Relay Detector
Applicable pins:5 pins/4 pins
Battery detection:11V~ 25V voltage
Applicable coil resistance:≥20Ω
Use power:Connect car battery power supply
Detection prompt light:lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.

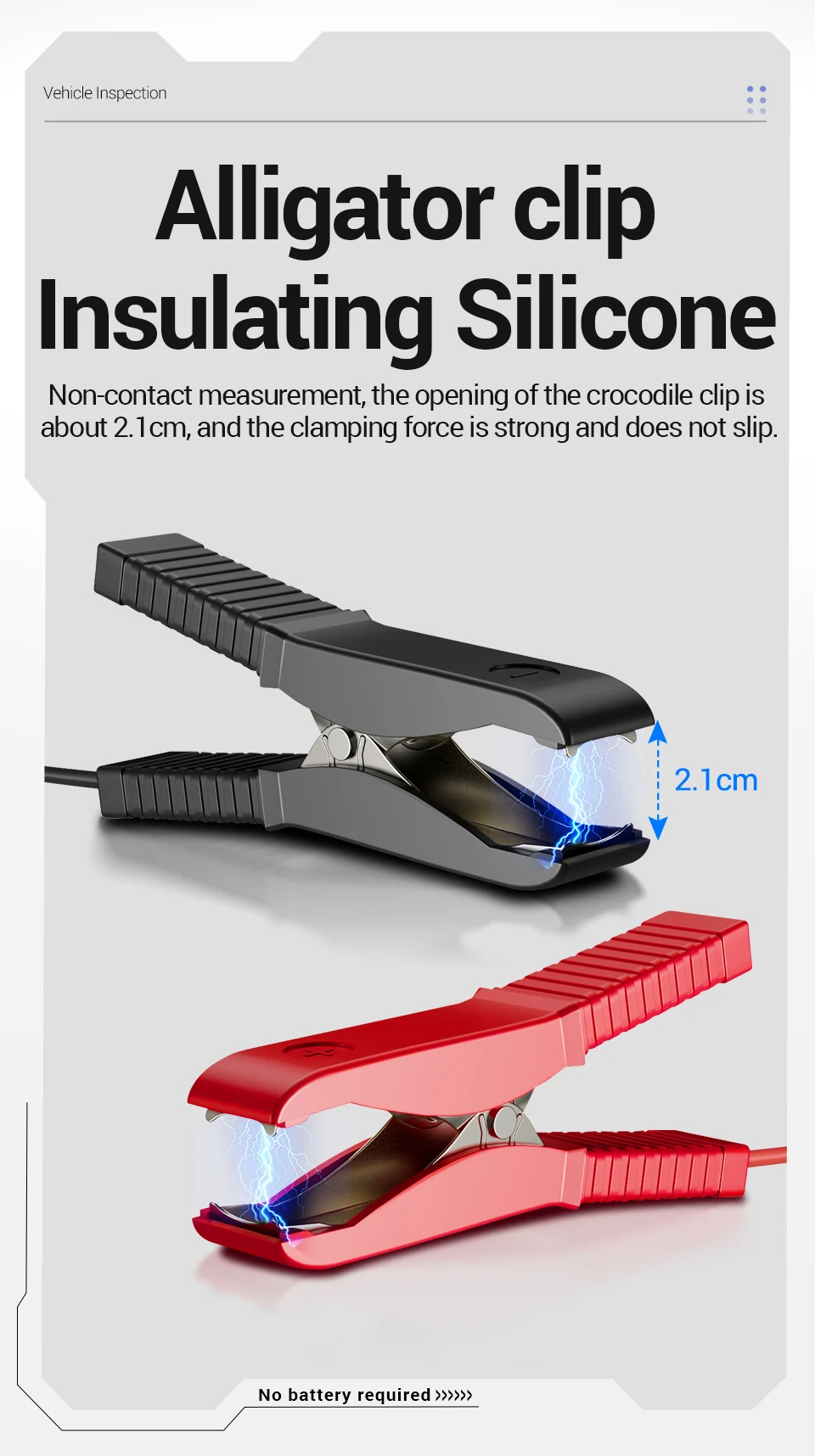

Alligator clip opening size:2.1cm/0.82inch
Alligator clip length:42cm/16.54inch
Digital display bright screen:Yes

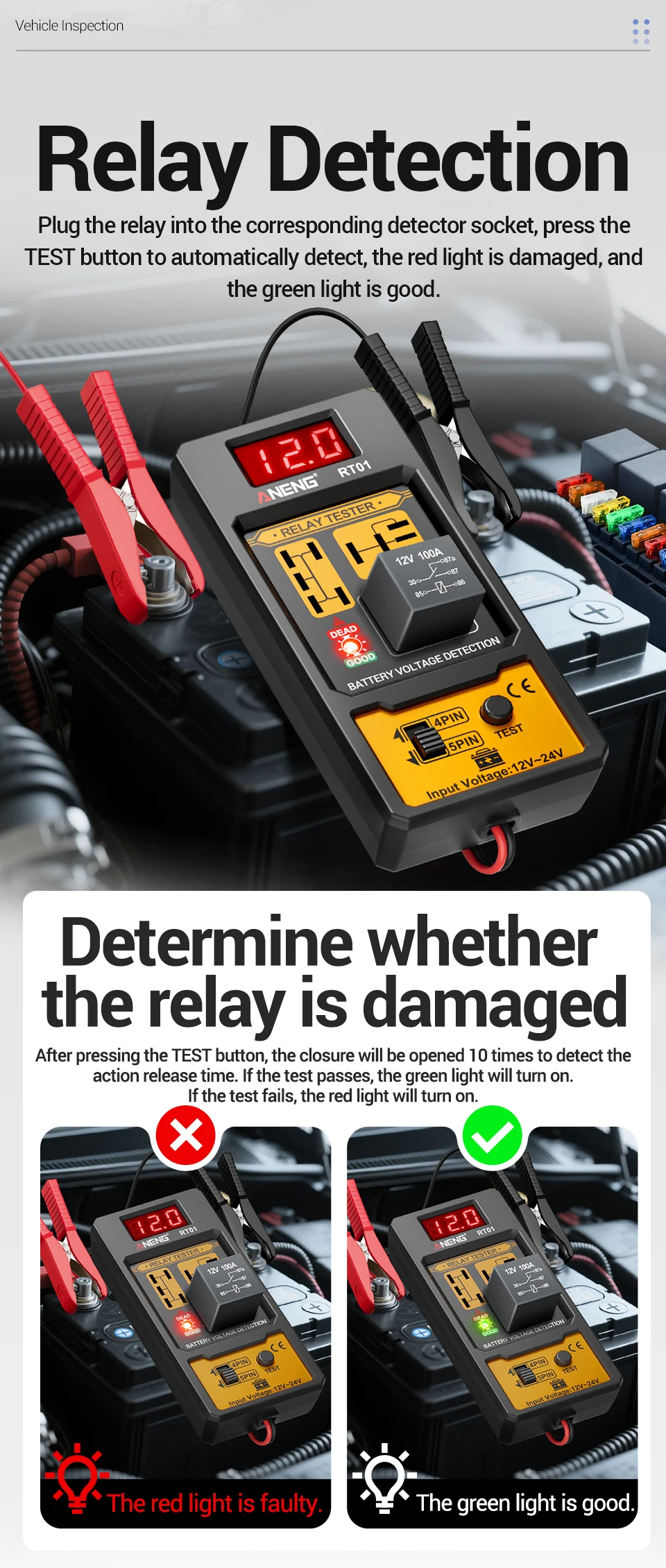

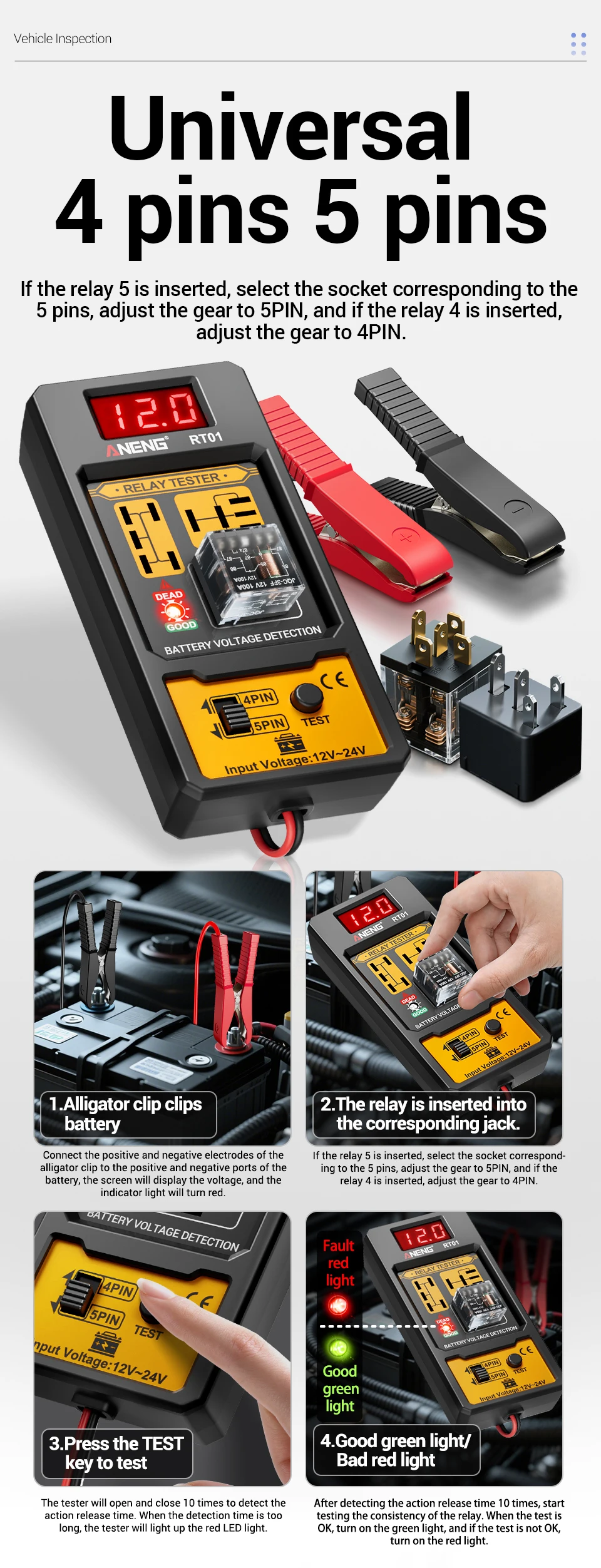

RT01 Operating instructions:

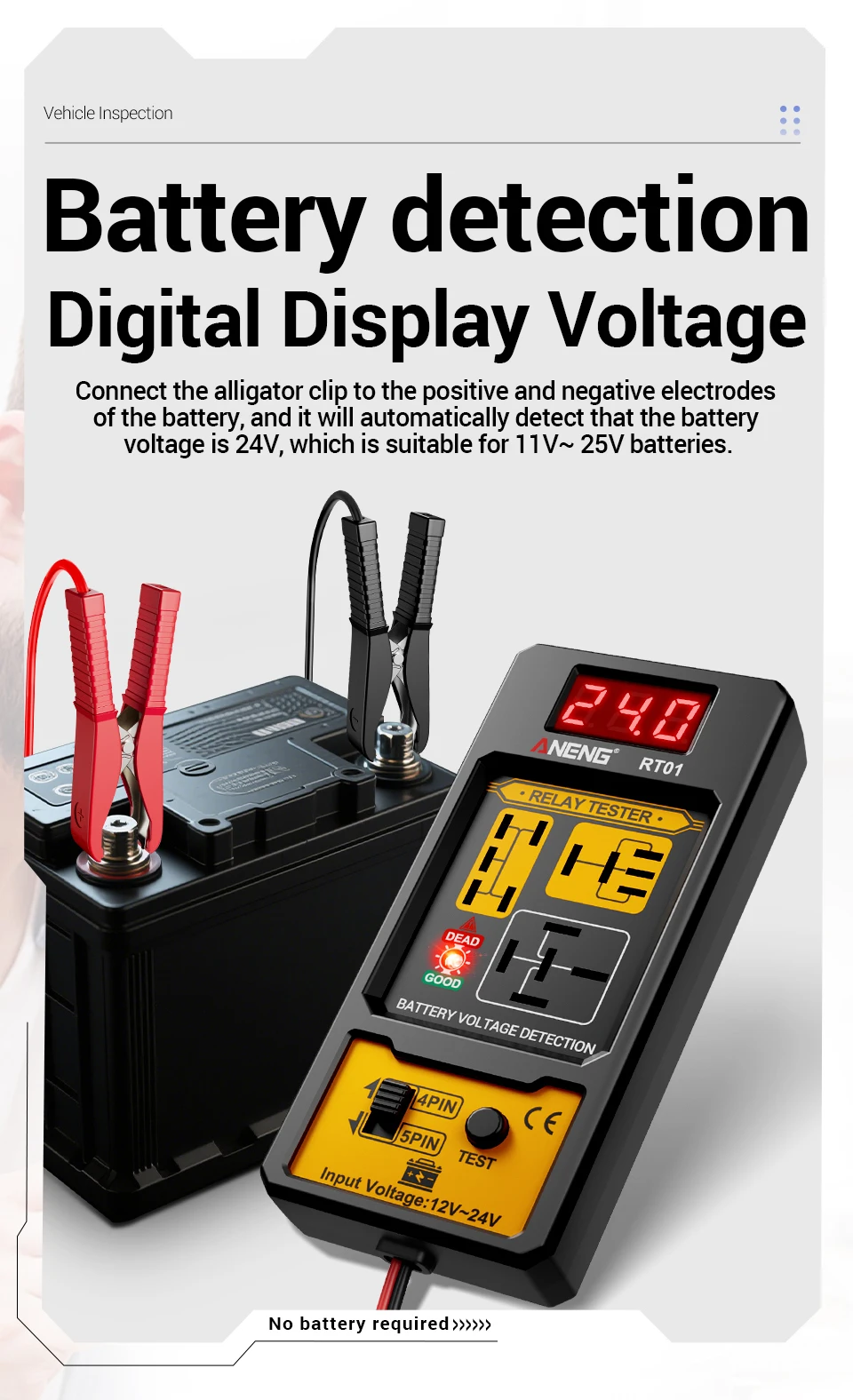

1）Clip the alligator clip of the tester on the car battery the black clip on the negative electrode and the red clip on the positive electrode.
2）When the red LED light is on, it indicates that the tester can start testing.
3）Check the relay before testing. lf it is 4 feet, choose a 4-foot socket on the tester; if it is 5 feet, choose a 5-foot socket on the tester.
4）Plug the relay into one of the three sockets
5）Press the "Test" button
6）The tester will automatically detect the pin position of the unknown relay. When the relay is not a universal relay on the market or is damaged, the tester will turn on a red LED light.
7）When the foot position is set correctly, the tester will open and close 10 times to detect the release time of the action. When the detection time is too long, the tester wil light up the red LED light.
8）When the tester has detected the action release time 10 times, start to detect the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK, turn on the red light.
9）After the test is complete, remove the alligator clip from the battery and remove the relay from the tester.

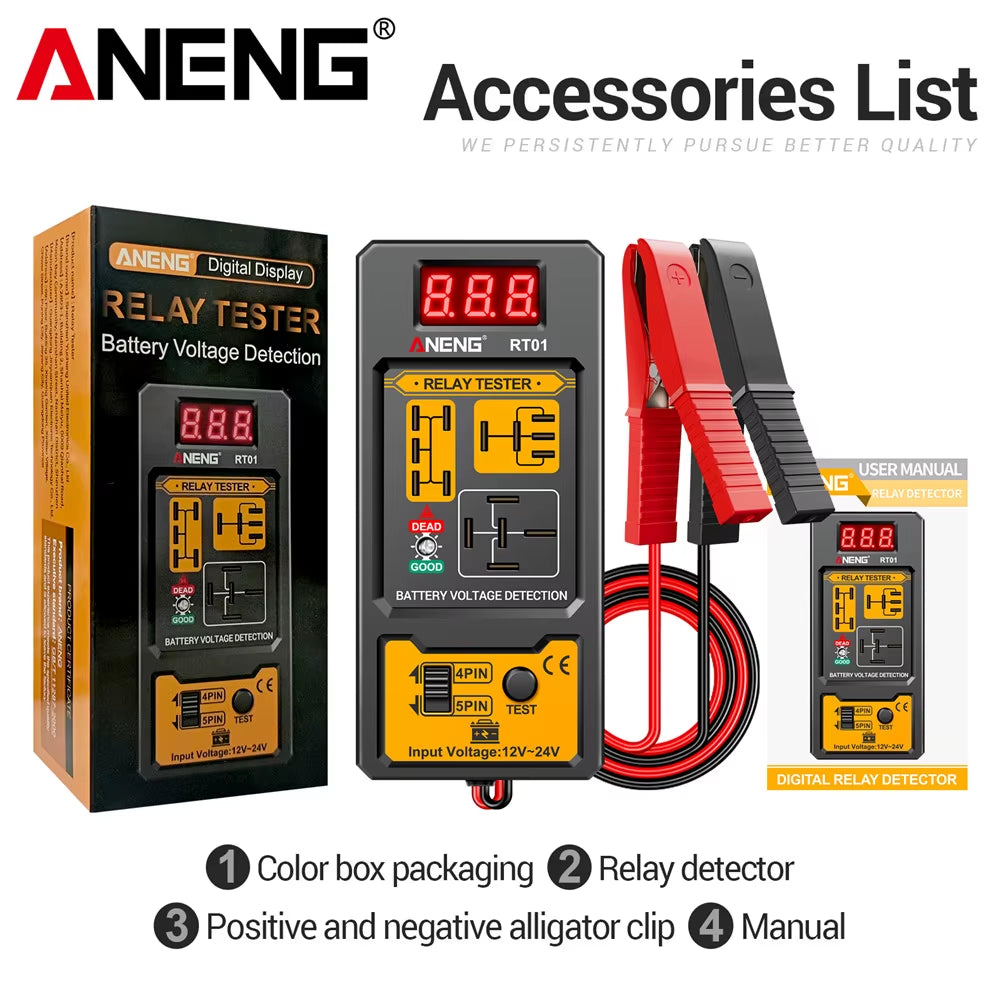

Packing List:
Choose according to your own needs
RT01 can quickly detect whether your relay is normal.It is easy to use and suitable for general-purpose automotive relays on the market.Durng testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position,the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.
RT01 Specification:
Product Model:RT01 Relay Detector
Applicable pins:5 pins/4 pins
Battery detection:11V~ 25V voltage
Applicable coil resistance:≥20Ω
Use power:Connect car battery power supply
Detection prompt light:lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.
Alligator clip opening size:2.1cm/0.82inch
Alligator clip length:42cm/16.54inch
Digital display bright screen:Yes
RT01 Operating instructions:
1）Clip the alligator clip of the tester on the car battery the black clip on the negative electrode and the red clip on the positive electrode.
2）When the red LED light is on, it indicates that the tester can start testing.
3）Check the relay before testing. lf it is 4 feet, choose a 4-foot socket on the tester; if it is 5 feet, choose a 5-foot socket on the tester.
4）Plug the relay into one of the three sockets
5）Press the "Test" button
6）The tester will automatically detect the pin position of the unknown relay. When the relay is not a universal relay on the market or is damaged, the tester will turn on a red LED light.
7）When the foot position is set correctly, the tester will open and close 10 times to detect the release time of the action. When the detection time is too long, the tester wil light up the red LED light.
8）When the tester has detected the action release time 10 times, start to detect the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK, turn on the red light.
9）After the test is complete, remove the alligator clip from the battery and remove the relay from the tester.
Packing List:
Choose according to your own needs
